Bismuth Sulfide Bi2S3 | As2S3 Ga2S3 In2S3 Ag2S ZnS

Description

Bismuth Sulfide or Bismuth Trisulfide Bi2S3, 99.995% and 99.999% purity, CAS 1345-07-9, MW 514.16, melting point 685°C, density 7.6-7.8g/cm³, brownish black orthogonal crystal, is insoluble in water and ethyl acetate, but soluble in nitric acid and hydrochloric acid. Bismuth Sulfide has the advantages of environmental friendly photoconductivity and nonlinear optical response. Belongs to group 15 (VA) post-transition metal trichalcogenides, orthorhombic structured Bismuth Sulfide Bi2S3 is a non-toxic N-type semiconductor material, Stoichiometric Bi2S3 has a layered structure favoring the formation of one-dimensional nanostructure such as nanowire, rod, tube, sheet and ribbon and so on, which exhibits excellent photocatalysis performance. With a favorable band gap of 1.3 eV and a relatively large absorption coefficient of 10cm-1, Bismuth Sulfide Bi2S3 is a direct bandgap semiconductor which finds applications in photodetectors, photosensitizers, solar cells, supercapacitors, photoelectric converters, thermoelectric cooling process, optoelectronic devices and infrared spectroscopy.

Delivery

Bismuth Sulfide Bi2S3 and Arsenic Sulfide As2S3, Gallium Sulfide Ga2S3, Indium Sulfide In2S3, Sliver Sulfide Ag2S, Zinc Sulfide ZnS at Western Minmetals (SC) Corporation with purity of 99.9% 3N, 99.99% 4N and 99.999% 5N can be delivered in form of powder, granule, lump, chunk, blank, bulk crystal and single crystal etc or as customized specification to reach the perfect solution.


Details

Tags

Technical Specification

Sulfide Compounds

Sulfide Compounds mainly refer to the metal elements and metalloid compounds, which have stoichiometric composition changing within a certain range to form a compound-based solid solution. Inter-metallic compound is of its excellent properties between the metal and ceramic, and become an important branch of the new structural materials. Sulfides Compound of Arsenic Sulfide As2S3, Bismuth Sulfide Bi2S3, Gallium Sulfide Ga2S3, Germanium Sulfide GeS2, Indium Sulfide In2S3, Lithium Sulfide Li2S,  Molybdenum Sulfide MoS2, Selenium Sulfide SeS2, Sliver Sulfide Ag2S, Solid Electrolytes Li2S+GeS2+P2Sand Li2S+SiS2+ Al2Smulti-element sulfide composite electrode material, Tin Selenide SnS2, Titanium Sulfide TiS2, Zinc Sulfide ZnS and its (Li, Na, K, Be, Mg, Ca) compounds and Rare Earth compounds can also be synthesized in form of powder, granule, lump, bar, crystal and substrate. Sulfides compound find a wide range of application  in luminescent materials, nonlinear optical materials, photocatalysis materials, electrolyte material, semiconductor dopant, QLED display, IC field etc and other material fields.

Bi2S3 (2)

In2S3 (2)

Bismuth Sulfide Bi2Sand Arsenic Sulfide As2S3, Gallium Sulfide Ga2S3, Indium Sulfide In2S3, Sliver Sulfide Ag2S, Zinc Sulfide ZnS at Western Minmetals (SC) Corporation with purity of 99.9% 3N, 99.99% 4N and 99.999% 5N can be delivered in form of powder, granule, lump, chunk, blank, bulk crystal and single crystal etc or as customized specification to reach the perfect solution.

No.   Item Standard Specification
Formula Purity Impurity PPM Max each
1         Arsenic Sulfide  As2S3  5N Available Upon Request.



Special specification can be customized

2        Bismuth Sulfide  Bi2S3  4N
3        Cadmium Sulfide CdS 5N
4        Gallium Sulfide Ga2S3 4N 5N
5        Germanium Sulfide GeS2 4N 5N
6        Indium Sulfide In2S3 4N
7        Lithium Sulfide Li2S 4N
8        Molybdenum Sulfide MoS2 4N
9        Selenium Sulfide SeS2 4N 5N
10        Silver Sulfide Ag2S 5N
11        Tin Sulfide SnS2 4N 5N
12        Titanium Sulfide TiS2 3N 4N 5N
13        Zinc Sulfide ZnS 3N
14        Sulfide Solid Electrolytes Li2S+GeS2+P2S5 4N
Li2S+SiS2+ Al2S3 4N
15   Size -60/-80mesh, 1-20mm Lump, 1-6mm Granule, Target or Blank
16   Packing In polyethylene bottle or composite bag, 1kg each.

Silver Sulfide

Ag2S (2)

Silver Sulfide Ag2S, grey black solid, CAS Number: 21548-73-2, MW 247.8, density 6.82-7.23g/cm3, melting point 825℃, insoluble in water but soluble in sulfuric acid and nitric acid. Silver sulfide Ag2S is one of the most requisite semiconducting sulfides, which has three basic polymorphic modifications of α-Ag2S phase (acanthite), β-Ag2S phase (argentite) and cubic γ-Ag2S phase. In normal conditions, bulk coarse-crystalline silver sulfide with α-Ag2S acanthite-type structure is a direct semiconductor with wide band gap of 0.9 eV, low charge-carrier mobility and good conductivity. Good chemical stability, ultra-low solubility, the presence of phase transition between a semiconducting acanthite and superionic argentite, which can be induced by external electric field without crystal heating, and unique optical and conductive characteristics of different phases of silver sulfide make it an excellent substance for preparation of nanostructured films and heteronanostructures with improved properties for possible application in optoelectronics, biosensing, in photochemical cells, infrared detectors, resistance-switches and in nonvolatile memory devices, an ideal semiconducting material for preparing low-toxicity quantum dots, photocatalysts in various redox-processes and for producing nanocomposite photocatalysts. Silver sulfide Ag2S at Western Minmetals (SC) Corporation with purity of 99.99% 4N, 99.999% 5N can be delivered in powder, granule, lump, chunk, bulk crystal and single crystal etc, or as customized specification, with vacuum packed by bottle or aluminum composite film bag.

Arsenic Sulfide

CM-W1

Arsenic Sulfide or Diarsenic Trisulfide As2S3, red lustrous monoclinic crystal, CAS No.1303-33-9, melting point 360°C, boiling point 707°C, molecular weight 246.04, density 3.5g/cm3, is soluble in acids and alkalis but insoluble in water. As2S3 occurs both in crystalline and amorphous forms. Arsenic Sulfide As2S3 is a group V/VI, intrinsic P-type semiconductor with a direct band-gap of 2.7 eV. and exhibits photo-induced phase-change property. The wide band gap makes it transparent to infrared between 620 nm and 11 µm. Arsenic trisulfider or Arsenic Trisulfide crystalline solid finds applications in depilatory agent, paint pigment, shot manufacturing, pyrotechnics, fireworks, acousto-optic material and used as a semiconductor and in photo optic applications etc. It can be used as a high resolution photoresist material to fabricate 3D nanostructures. Arsenic trisulfide is manufactured into amorphous form as a chalcogenide glass for infrared optics, which is more resistant to oxidation than crystalline arsenic trisulfide. Arsenic Sulfide or Arsenic Trisulfide Arsenic Sulfide As2Sat Western Minmetals (SC) Corporation with purity of 99.99% 4N, 99.999% 5N can be delivered in form of powder, granule, lump, chunk, blank, bulk crystal and single crystal etc or as customized specification.

Gallium Sulfide

Ga2S3

Gallium Sulfide or Digallium Trisulfide Ga2S3white solid, density 3.46~3.65g/cm3, melting point of 1090~1255°C, molecular mass 235.641, CAS 12259-25-5, is sensitive to moisture, dissolves in water slowly, and easily soluble in concentrated alkaline to form gallate salt but also soluble in hydrochloric acid and nitric acid. Gallium Sulfide yellow layered crystal sublimates at 900-10000C and decompose above melting point. Gallium Sulfide Ga2S3 crystal 99.999% purity is yellow colored and transparent, which is synthesized by CVD chemical vapor deposition method. Alpha phase Gallium Sulfide is a semiconductor with an indirect band gap of ~2.6 eV.  Gallium Sulfide Ga2Sat Western Minmetals (SC) Corporation with purity of 99.99% 4N, 99.999% 5N can be delivered in form of powder, granule, lump, chunk, blank, bulk crystal and single crystal etc or as customized specification, which is widely used for semiconductor industry and thin film solar cells.

Indium Sulfide

In2S3 (2)

Indium Sulfide or Indium Trisulfide In2S3, 99.99%, 99.999%, CAS 12030-14-7, density 5.18g/cm3, melting point 695oC, MW 325.831, black or reddish brown crystals, deformed NaCl structure, is stable at room temperature and insoluble in water and dilute acid. Single crystal Indium Sulfide In2S3, III-VI compound semiconductor, is a direct gap and N-type conductivity semiconductor. Indium sulfide In2S3 is a particular attractive semiconductor for solar cell, photoconductive, optical and electrical sensor, which has a good application prospect in photovoltaic and wide spectrum optoelectronic devices. It can be used as buffer layer of CIGS thin film solar cells. Furthermore, Indium Sulfide is easy to form compounds with other metal sulfides, such as indium silver disulfide, copper indium disulfide etc which are important semiconductor materials. Indium Sulfide In2S3 at Western Minmetals (SC) Corporation with purity of 99.99% 4N, 99.999% 5N in shape of powder, granule, lump, chunk, bulk crystal and single crystal etc is available or as customized specification, with package of polyethylene bottle or composite bag.

Zinc Sulfide

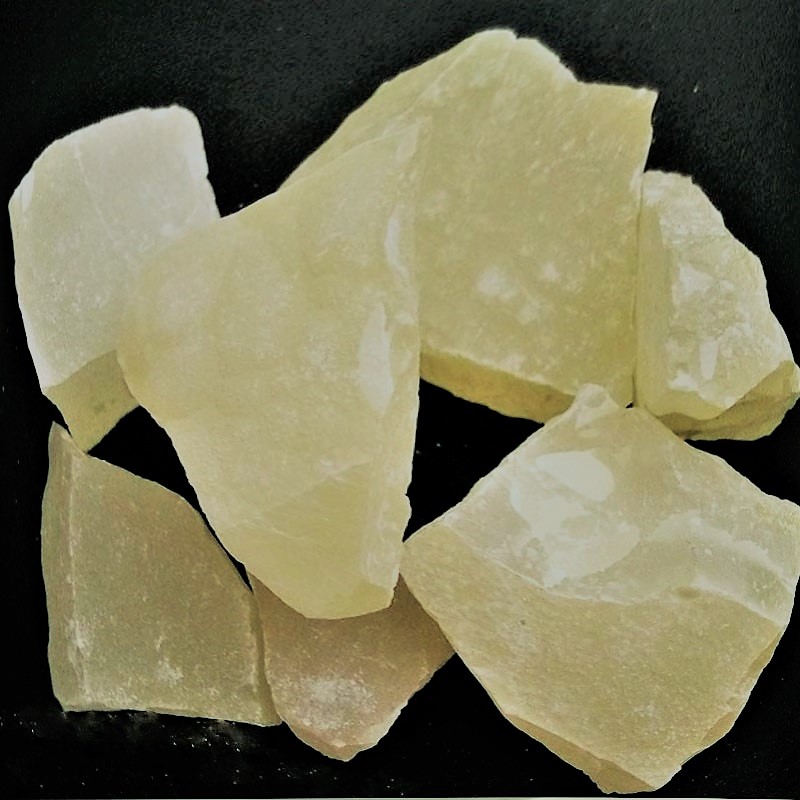

ZnS1

Zinc Sulfide ZnS 99.99%, 99.999% purity, CAS1314-98-3, MW 97.44, density 3.98g/cm3, melting point 1700oC, is white to grayish white or light yellow solid cubic crystalline with slightly pungent smell. It is a relatively stable in dry air, soluble in dilute inorganic acid but insoluble in water. Zinc Sulfide is important infrared window materials with the light transmission range of 0.35 ~ 14.51m. It also primarily used as photoconductor material and coating material for preparation of photo controlled bioelectrochemical sensor, flexible transparent conductive coating for manufacturing flexible displays, solar cells and other printed electronic devices, for color tunable LED, and for various filters and laser windows. It finds more application in fluorescent materials, semiconductor components, piezoelectric, photoelectric, thermoelectric devices, UV radiation, anode ray, X-ray, r-ray, laser radiation detector materials, ZnS film heterojunction optoelectronic devices etc. Zinc Sulfide ZnS at Western Minmetals (SC) Corporation with purity of 99.99% 4N, 99.999% 5N in powder, granule, lump, chunk, bulk crystal and single crystal etc is available or as customized specification, with package of polyethylene bottle or composite bag.

Procurement Tips

  • Sample Available Upon Request
  • Safety Delivery of Goods By Courier/Air/Sea
  • COA/COC Quality Management
  • Secure & Convenient Packing
  • UN Standard Packing Available Upon Request
  • ISO9001:2015 Certified
  • CPT/CIP/FOB/CFR Terms By Incoterms 2010
  • Flexible Payment Terms T/T D/P L/C Acceptable
  • Full Dimensional After-Sale Services
  • Quality Inspection By Sate-of-the-art Facility
  • Rohs/REACH Regulations Approval
  • Non-Disclosure Agreements NDA
  • Non-Conflict Mineral Policy
  • Regular Environmental Management Review
  • Social Responsibility Fulfillment

Bi2S3 As2S3 Ga2S3 In2S3 Ag2S ZnS
