Sapphire Al2O3 Wafer & Ingot

Description

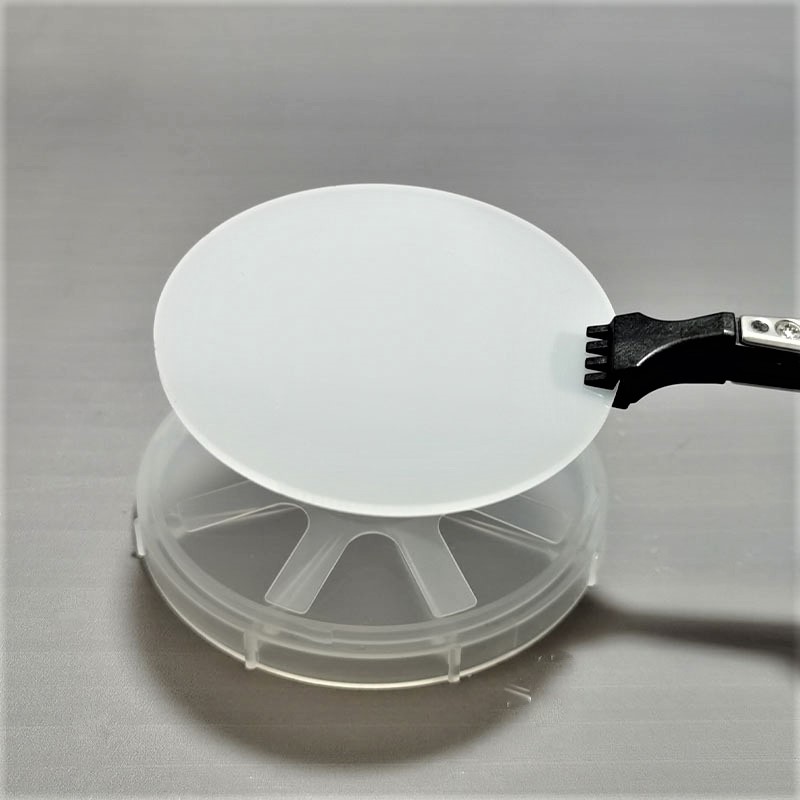

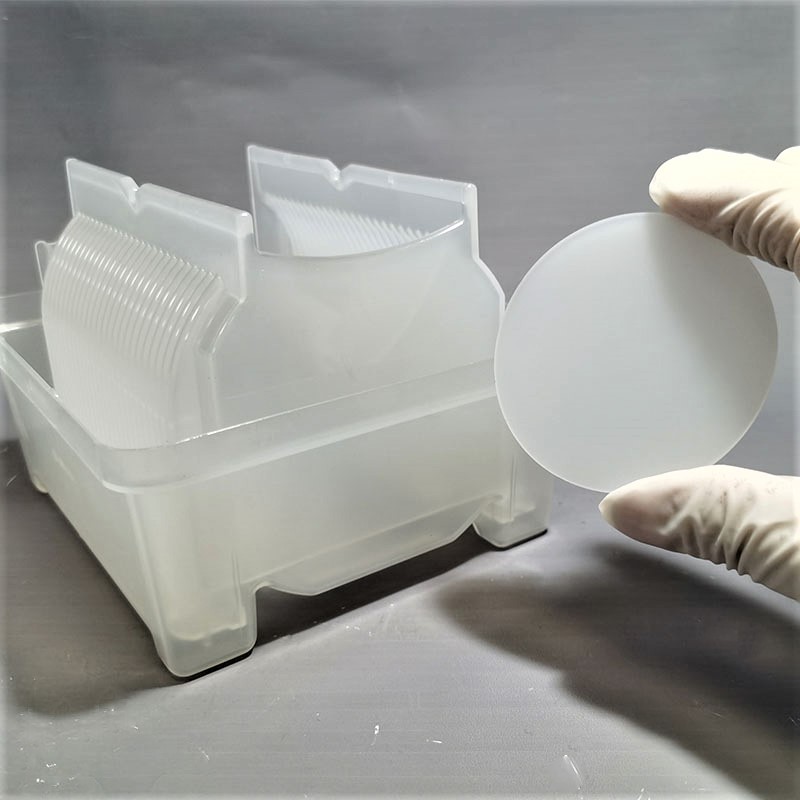

Sapphire Single Crystal Wafer & Ingot or Aluminum Oxide Al2O3 99.999% min, also known as the white stones, anisotropic hexagonal structure, is an excellent multi-purpose material with unique optical properties, physical properties and chemical properties, having extreme surface hardness, high thermal conductivity, high dielectric constant, excellent transparency and good chemical stability with resistance to common chemical acids and alkalis. Sapphire  Single Crystal or Aluminum Oxide single crystal  Al2O3 99.999% purity at Western Minmetals (SC) Corporation can be delivered in size of  diameter 2″, 4″ and 6″ (50mm, 100mm, 150mm) wafer and ingot, with surface finish in etched, polished or epi-ready process finishes. Any customized specification and size are the prefect solution to our customers worldwide.

Applications

Because of its structural strength of the second hardest crystal next to diamonds, Sapphire crystal is widely used in the fabrication of single crystal substrate, superconducting film substrate material, blue, purple and white light emitting diodes LEDs,  high-temperature infrared window, and a blue laser LD Industrial preferred substrate. Single Crystal Sapphire or single crystal aluminum oxide Al2O3 is useful in a transmission range from 0.2-5.5 μm as well as in other advanced power semiconductors manufacturing industries.


Details

Tags

Technical Specification

SP-W3

Sapphire Crystal Al2O3

Sapphire Crystal, with its structural strength of the second hardest crystal next to diamonds, is widely used in the fabrication of single crystal substrate, superconducting film substrate material, blue, purple and white light emitting diodes LEDs,  high-temperature infrared window, and a blue laser LD Industrial preferred substrate. Single Crystal Sapphire or single crystal aluminum oxide Al2O3 is useful in a transmission range from 0.2-5.5 μm as well as in other advanced power semiconductors manufacturing industries.

No. Items Standard Specification
1 Diameter mm 50.8±0.05 100±0.1 150±0.2
2 Growth Method HEM HEM HEM
3 Orientation (C-A) or (C-M) (C-A) or (C-M) (C-A) or (C-M)
4 Primary Flat Location A-axis ±0.2° A-axis ±0.2° A-axis ±0.2°
5 Primary Flat Length mm 16±0.5 30±0.5 47.5±0.5
6 Thickness μm 430±10 650±20 1300±20
7 TTV μm max 5 10 15
8 Bow μm max 5 10 15
9 Warp μm max 8 15 30
10 Surface Finish P/E P/E P/E
11 Surface Roughness nm <0.2 (epi-ready, for polished surface)

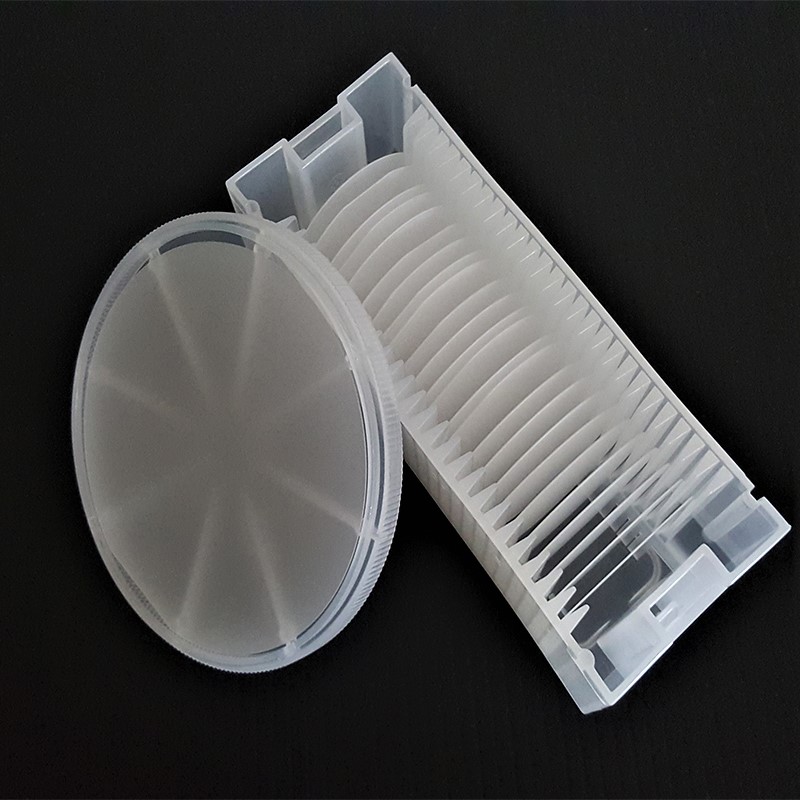

12 Packing In vacuum bag filled with nitrogen atmosphere

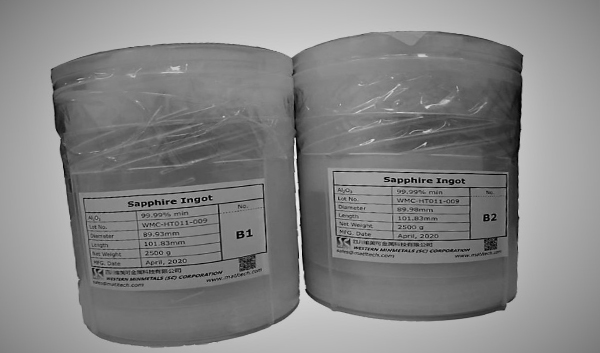

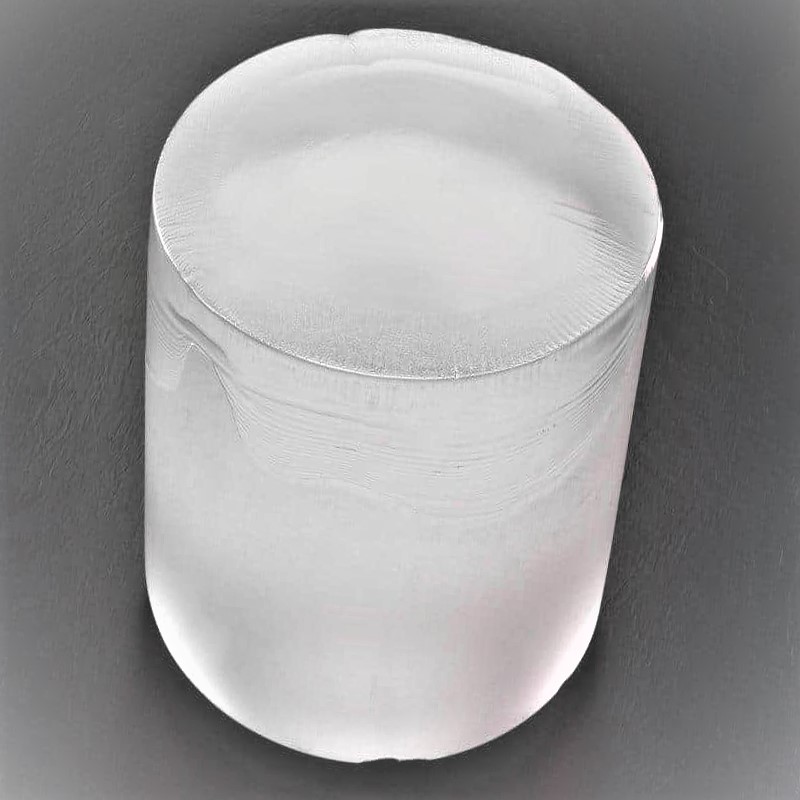

13 Remarks Ingot and bulk up to 8" is available upon request.
Linear Formula Al2O3
Molecular Weight 101.96
Crystal structure Hexagonal
Appearance Translucent solid
Melting Point 2050 °C, 3720 °F
Boiling Point 2977 °C, 5391 °F
Density at 300K 4.0 g/cm3
Energy Gap N/A
Intrinsic resistivity 1E16 Ω-cm
CAS Number 1344-28-1
EC Number N/A

Sapphire  Single Crystal or Aluminum Oxide single crystal  Al2O3 99.999% purity at Western Minmetals (SC) Corporation can be delivered in size of  diameter 2″, 4″ and 6″ (50mm, 100mm, 150mm) wafer and ingot, with surface finish in etched, polished or epi-ready process finishes. Any customized specification and size are the prefect solution to our customers worldwide.
