High Purity Gallium

Description

High Purity Gallium, 99.999%, 99.9999% and 99.99999% 5N 6N 7N, soft metal, silvery white in liquid state and bluish white in solid state, its erosion almost not affected by oxygen and water at room temperature, is oxidized only at high temperature, and reacts slowly with dilute acid. Metal gallium is purified to 99.999%, 99.9999% and 99.99999% 5N 6N 7N by the purification process of directional crystallization method. High Purity Gallium at Western Minmetals (SC) Corporation with purity of 99.999%, 99.9999% and 99.99999% 5N 6N 7N can be delivered in form of container shape of 100g, 500g or 1000g weight, which is packed for safety and suitable transportation with dry ice protection, or as customized specification to reach the perfect solution.

Applications

High Purity Gallium is primarily used in the manufacturing of III-V compound semiconductors such as Gallium Arsenide GaAs, Gallium Phosphide GaP, Gallium Antimonide GaSb, blue Gallium Nitride GaN, microwave circuit, high purity alloys, oxide semi-conductor and LED chip, thermal carrier in atomic reactor and as molecular beam epitaxy (MBE) source material, and as the dopant of germanium and silicon single crystal growth etc.

.


Details

Tags

Technical Specification

Ga

Atomic No.

31

Atomic Weight

67.2

Density

5.91g/cm3

Melting Point

29.78°C

Boiling Point

2403°C

CAS No.

7440-55-3

H.S Code

8112.9290.99

Commodity  Standard Specification
Purity Impurity  (ICP-MS or GDMS Test Report, PPM Max each)
High Purity
Gallium
5N   99.999%   Zn/Ca/Al/Ni/In 0.5, Mg/Mn 0.6, Si/Hg 1.0, Sn/Fe 0.8, Cu 1.5, Pb 1.8     Total ≤10
6N   99.9999%   Zn/Mg/Pb/Sn/Fe 0.1, Si 0.2, Cu/Al/Ni/Mn/Cr 0.05     Total ≤1.0
7N   99.99999%   Zn/Al/Ni/In 0.001, Mn 0.003, Cu/Ca/Mg/Pb/Sn 0.005, Si 0.05     Total ≤0.1
Size   In the shape of container, 100g/500g/1000g per bottle
Packing   In plastic bottle or composite bag with blue ice, carton box or iron drums outside.

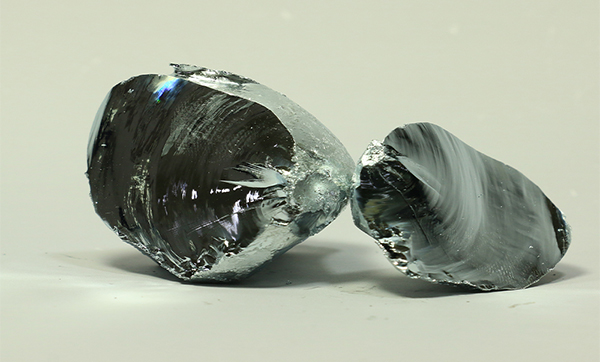

High Purity gallium

High Purity Gallium 5N 6N 7N at Western Minmetals (SC) Corporation with purity of 99.999%, 99.9999% and 99.99999% can be delivered in form of container shape of 100g, 500g or 1000g weight, which is packed for safety and suitable transportation with dry ice protection, or as customized specification to reach the perfect solution.

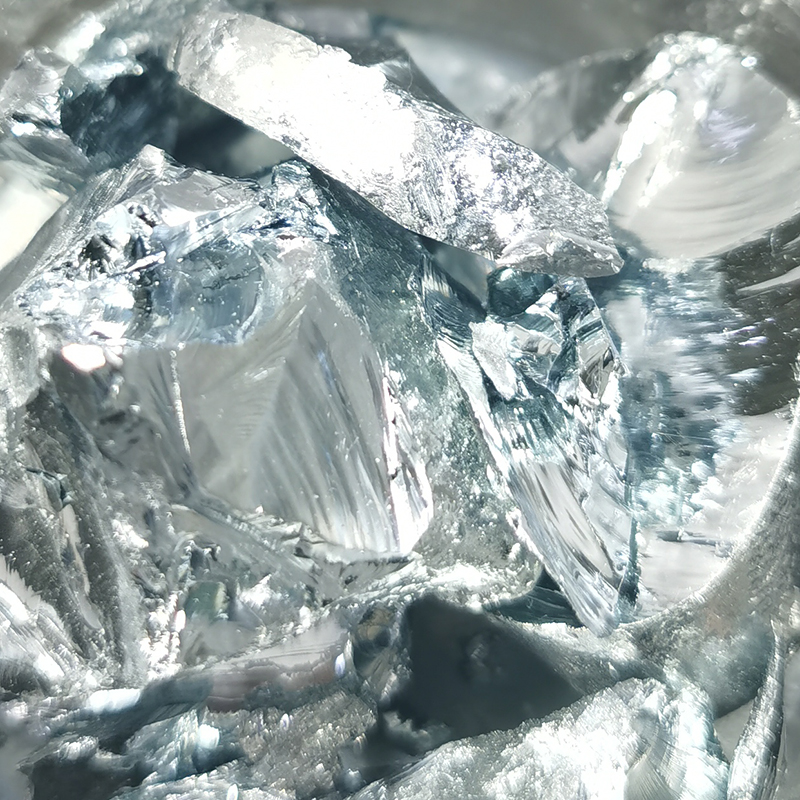

High purity gallium (3)

High Purity Gallium 99.999%, 99.9999% and 99.99999% is primarily used in the manufacturing of III-V compound semiconductors such as Gallium Arsenide GaAs, Gallium Phosphide GaP, Gallium Antimonide GaSb, blue Gallium Nitride GaN, microwave circuit, high purity alloys, oxide semi-conductor and LED chip, thermal carrier in atomic reactor and as molecular beam epitaxy (MBE) source material, and as the dopant of germanium single crystal and silicon single crystal growth etc.

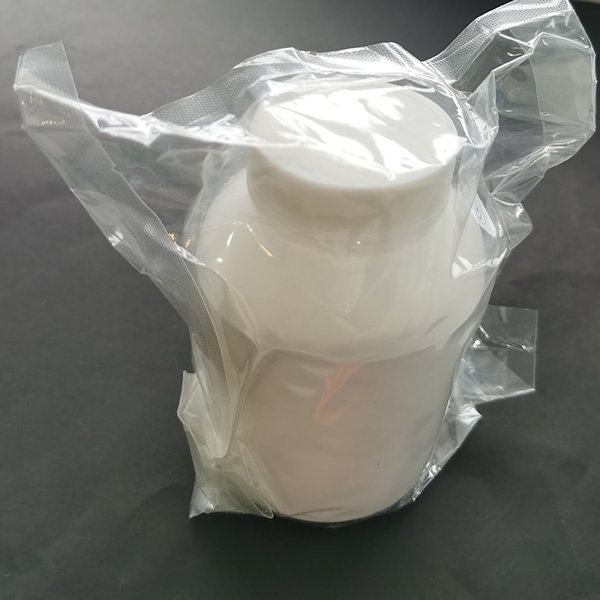

f24

PK-14 (2)

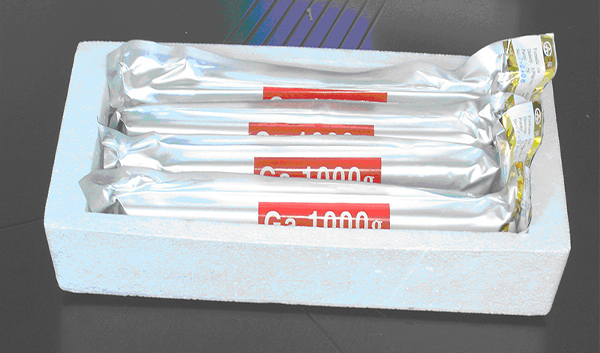

High purity gallium  (6)

Procurement Tips

  • Sample available Upon Request
  • Safety Delivery of Goods By Courier/Air/Sea
  • COA/COC Quality Management
  • Secure & Convenient Packing
  • UN Standard Packing Available Upon Request
  •
  • ISO9001:2015 Certified
  • CPT/CIP/FOB/CFR Terms By Incoterms 2010
  • Flexible Payment Terms T/T D/P L/C Acceptable
  • Full Dimensional After-Sale Services
  • Quality Inspection By Sate-of-the-art Facility
  • Rohs/REACH Regulations Approval
  • Non-Disclosure Agreements NDA
  • Non-Conflict Mineral Policy
  • Regular Environmental Management Review
  • Social Responsibility Fulfillment
