Zirconium Oxide ZrO₂ | Hafnium Oxide HfO₂ 99.9%

Description

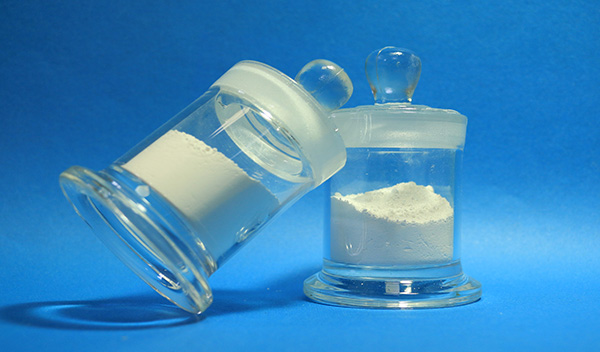

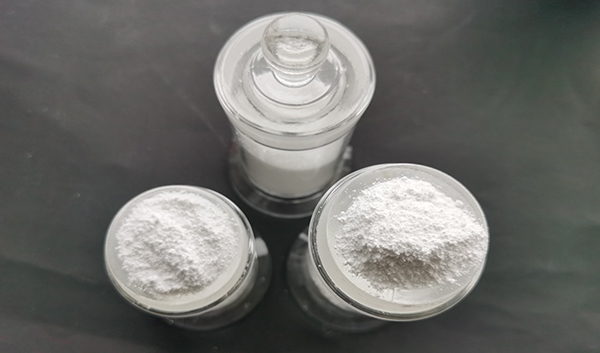

Zirconium Oxide ZrO₂, or Zirconium Dioxide, practically insoluble in water, and slight soluble in HCl and HNO₃, melting point 2700°C, density 5.85g/cm³, is odorless crystal with high melting point, high resistivity, high refractive index and low thermal expansion coefficient properties, which is the important high temperature resistant materials, ceramic insulating materials, ceramic sunscreens and raw materials for artificial gems. ZrO₂ is general goods which should be kept in cool, dry and well-ventilated place, keep the container tightly closed and away from strong alkali. Zirconium Oxide ZrO₂is commonly used for making metal zirconium and zirconium compounds, high frequency ceramics, abrasive materials, ceramic pigments, refractory material and optical glass.

Delivery

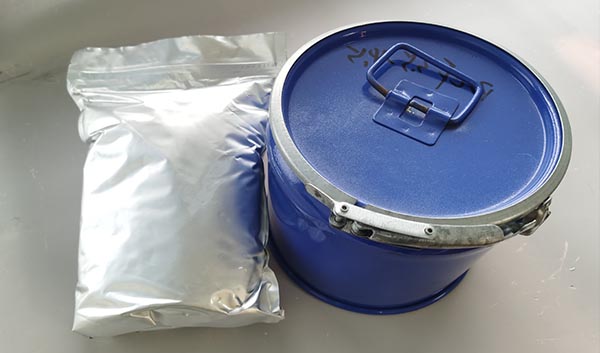

Zirconium Oxide or Zirconium Dioxide ZrO₂ with purity of ZrO₂+HfO₂≥ 99.9% and Hafnium Oxide HfO₂ with purity of HfO₂+ZrO₂ ≥99.9% at Western Minmetals (SC) Corporation can be delivered in size of 60-150mesh powder, 25kg in plastic bag with cardboard drum outside, or as customized specification.

Inquiry now

Details

Tags

Technical Specification

ZrO₂ & HfO₂

Zirconium Oxide or Zirconium Dioxide ZrO₂ with purity of ZrO₂+HfO₂≥ 99.9% and Hafnium Oxide HfO₂ with purity of HfO₂+ZrO₂ ≥99.9% at Western Minmetals (SC) Corporation can be delivered in size of 60-150mesh powder, 25kg in plastic bag with cardboard drum outside, or as customized specification.

Items	HfO₂	ZrO₂
Appearance	White Powder	White Powder
Molecular Weight	210.49	123.22
Density	9.68 g/cm³	5.85 g/cm³
Melting Point	2758 °C	2700 °C
CAS No.	12055-23-1	1314-23-4

No.	Item			Standard Specification
1	Purity			Impurity (PCT Max each)	Size
2	ZrO2	ZrO₂+HfO₂ ≥	99.9%	Si 0.01, Fe 0.001, Ti/Na 0.002, U/Th 0.005	60-150mesh
3	HfO2	HfO₂+ZrO₂ ≥	99.9%	Fe/Si 0.002, Mg/Pb/Mo 0.001, Ca/Al/Ni 0.003, Ti 0.007, Cr 0.005	100mesh
4	Packing			25kgs in plastic bag with cardboard drum outside

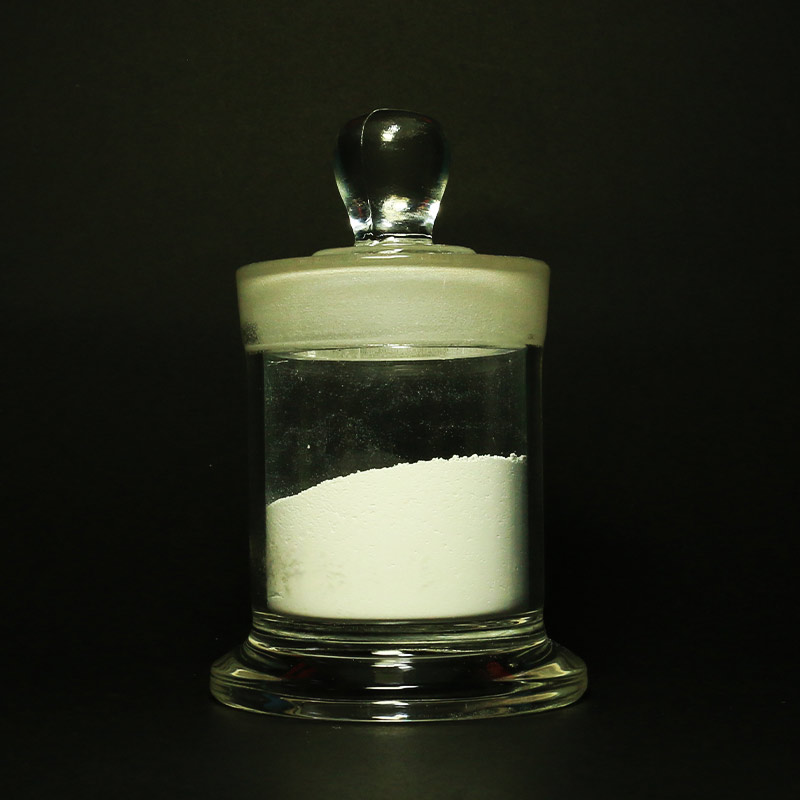

Hafnium Oxide HfO₂, or Hafnium Dioxide, a compound of hafnium, HfO₂+ZrO₂ ≥99.9%, melting point 2758°C, density 9.68g/cm³, is insoluble in water, HCl and HNO₃, but soluble in H₂SO₄ and HF. Hafnium Oxide HfO₂ is a ceramic material with wide band gap and high dielectric constant. Hafnium Oxide HfO₂is the most likely to replace the gate insulator silica of metal oxide semiconductor field effect tube to solve the size limit problem of the development of the traditional SiO₂/Si structure in MOSFET, so it is a advanced material used in microelectronic field. It is also widely used for making hafnium metal, hafnium compounds, refractory material, anti-radioactive coating material, and catalyst.
