High Purity Germanium

Description

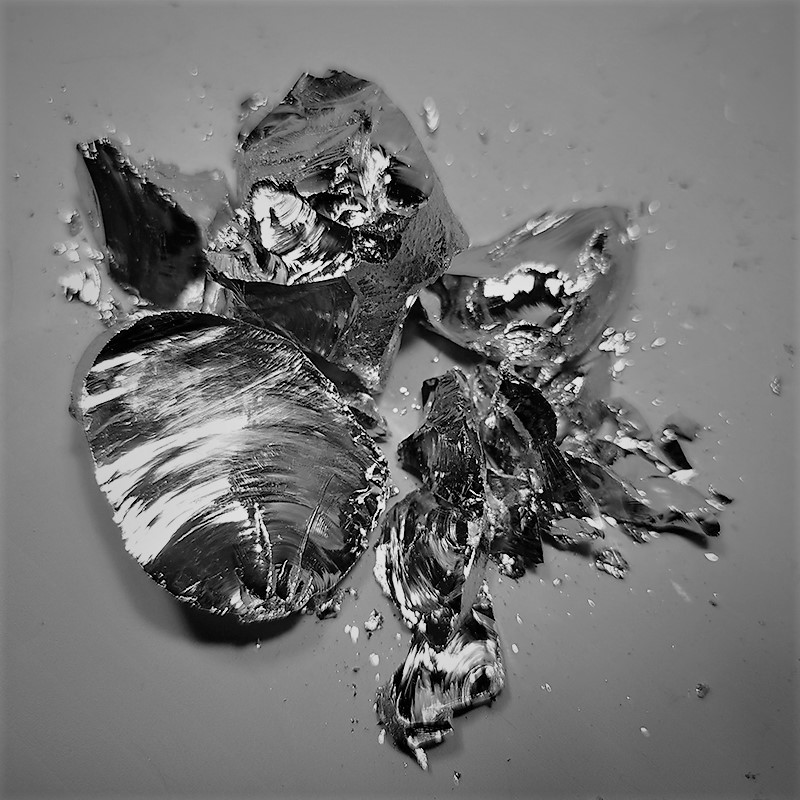

High Purity Germanium 5N 6N, known as Zone-Refined Germanium 99.999% 99.9999%, is a hard and brittle, silvery-white lustrous semiconductor material with atomic weight 72.59, melting point 937.4°C , density 5.33g/cm³ and resistivity of over 47ohm-cm (23+/-0.5°C), which is insoluble in hydrochloric acid, nitric acid and alkali, but soluble in HF, aqua regia and hot NaOH solution, and dissolves more faster with the action of H₂O₂. Zone-Refined Germanium is a typical semiconductor with n-type and p-type conductivity characteristics, which is prepared by the zone melting purification process from reduced germanium ingot. High Purity Germanium 5N 6N at Western Minmetals (SC) Corporation with 99.999% and 99.9999% purity can be delivered in various forms of rod, bar, granule and shot, which is packed in composite aluminum bag or in polyethylene bag with carton box or wooden case outside, or as customized specification to reach the perfect solution.

Applications

Zone-Refined Germanium 5N 6N or High Purity Germanium is a polycrystalline with high purity of 99.999%, 99.99999%, is mainly used as raw material for the production of germanium single crystal. Zone-Refined Germanium has wide and important applications for the preparation of semiconductor detector, infrared optical germanium single crystal, germanium alloy Ge-Cr or Ge-Si, as lens and windows in infrared night-vision devices, solar cell, nuclear physics detection, as component of glass telecommunications fiber-optics, as substrate in electronic and other technology applications.

Inquiry now

Details

Tags

Technical Specification

Ge

Atomic No.	32
Atomic Weight	72.59
Density	5.33g/cm³
Melting Point	937.4°C
Boiling Point	2800°C
CAS No.	13494-80-9
H.S Code	8112.9210.90

Commodity	Standard Specification
	Purity		Impurity (ICP-MS or GDMS Test Report, PPM Max each)
Zone-Refined Germanium	5N	99.999%	Fe/Pb 0.1, Cu/Ni/Co 0.2, As 0.5, Al 1.0	Total ≤10
	6N	99.9999%	Cu/In/Al 0.01, Ca/Zn 0.15, As/Fe/Mg 0.1, Ni/Pb/Si/Co 0.02	Total ≤1.0
	Size		26x21x23mm ( 1-2kg bar )
	Resistivity		≥50ohm-cm (23+/-0.5°C)

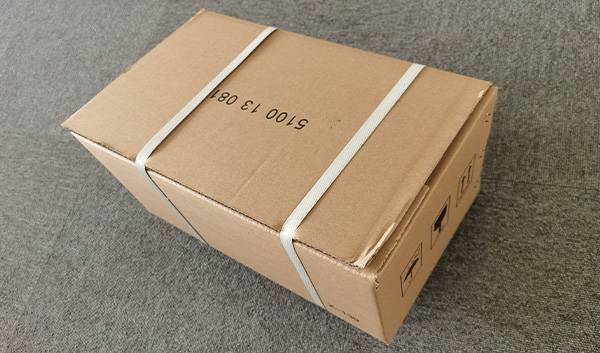

	Packing		1kg in plastic bag, carton box outside

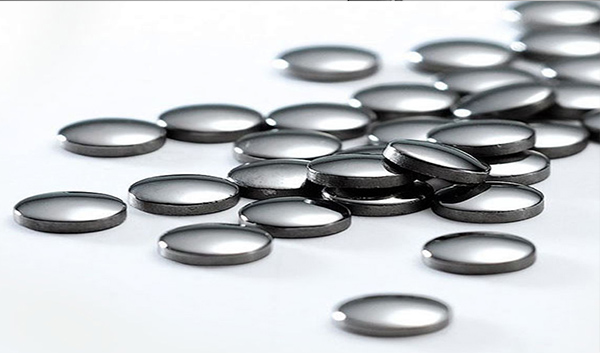

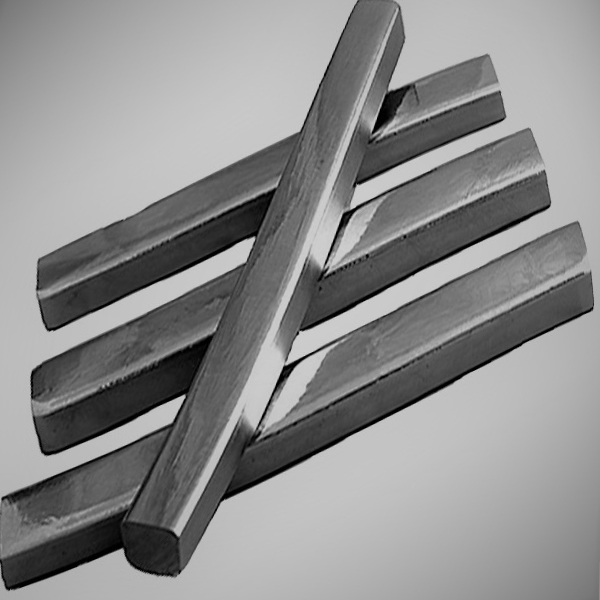

High Purity Germanium 5N 6N or Zone-Refined Germanium at Western Minmetals (SC) Corporation with 99.999% and 99.9999% purity can be delivered in various polycrystalline forms of rod, bar, granule and shot, which is packed in composite aluminum bag or in polyethylene bag with carton box or wooden case outside, or as customized specification to reach the perfect solution.

Zone-Refined Germanium 5N 6N or High Purity Germanium is a polycrystalline with purity of 99.999%, 99.99999%, is mainly used as raw material for the production of germanium single crystal. Zone-Refined Germanium has wide and important applications for the preparation of semiconductor detector, infrared optical germanium single crystal, germanium alloy Ge-Cr or Ge-Si, as lens and windows in infrared night-vision devices, solar cell, nuclear physics detection, as component of glass telecommunications fiber-optics, as substrate in electronic and other technology applications.
