Tungsten Carbide Pellet

Description

Tungsten Carbide Pellet or Cemented Carbide Pellet, YQ series with cobalt content of 4%, 6% and 7% roughly as binder and tungsten carbide balance, density 14.5-15.3 g/cm3, is a kind of extremely hard material by compressing, sintering and granulating under extreme heat and pressure and resistant to interaction with various liquids and alloys. Tungsten carbide pellet is of good spherical shape, high wear resistance and high corrosion resistance. Tungsten Carbide Pellet at Western Minmetals (SC) Corporation can be delivered in YQ1, YG2, YQ3 grade respectively with size of 10-20, 14-20, 20-30 and 30-40 mesh and in package of 25kgs plastic bag with iron drum outside, or as customized specification to reach the perfect solution.

Application

Tungsten Carbide Pellet is for hard-surfacing to increase significantly the service life after welding onto the surface of the tools to form a hardened wear-resistant layer to against abrasive wear, and spraying wear parts in mining and oil drilling field, and for built-up welding to improve substantially the hardness, wear resistance and corrosion resistance of the surface of the machined parts. Tungsten carbide pellet is also widely used as punching and stamping machine parts, impact-resistant forging die, hot forging die and finished rollers, engineering machinery, metallurgical as well as mining industry etc.


Details

Tags

Technical Specification

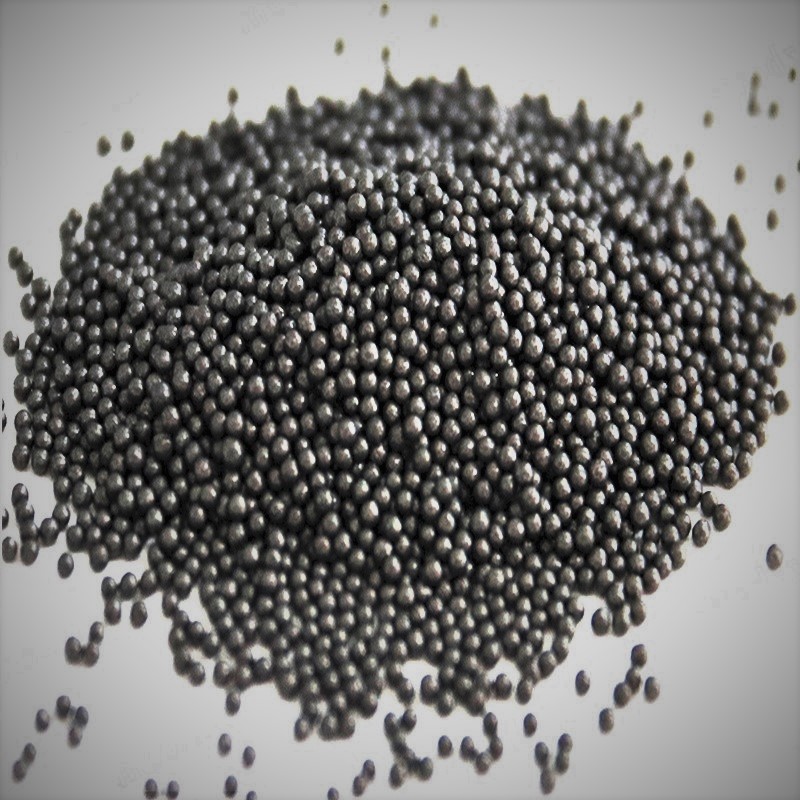

Tungsten carbide pellet  (3)

Tungsten Carbide Pellet

Commodity Item Standard Specification
Tungsten Carbide
Pellet

Cemented Carbide
Pellet

WC Pellet

Grade YQ1 YQ2 YQ3
Co           % 3.5-4.0 5.7-6.3 6.5-7.2
WC          %min Balance Balance Balance
Total Carbon % 5.5-5.9 5.4-5.8 5.4-5.8
Chemical Free Carbon 0.1%, Ti 0.5%,  Fe 0.5%,  O 1.0%
Density    g/cm3 14.8-15.3 14.8-15.0 14.5-15.0
HV           kg/mm2 ≥1400 ≥1300 ≥1300
Porosity A04  B04  C04 A04  B04  C02 A04  B04  C04
Microstructure No de-carbonization and Cobalt pools
Size 10-20 Mesh ,  14-20 Mesh ,  20-30 Mesh,  30-40 Mesh

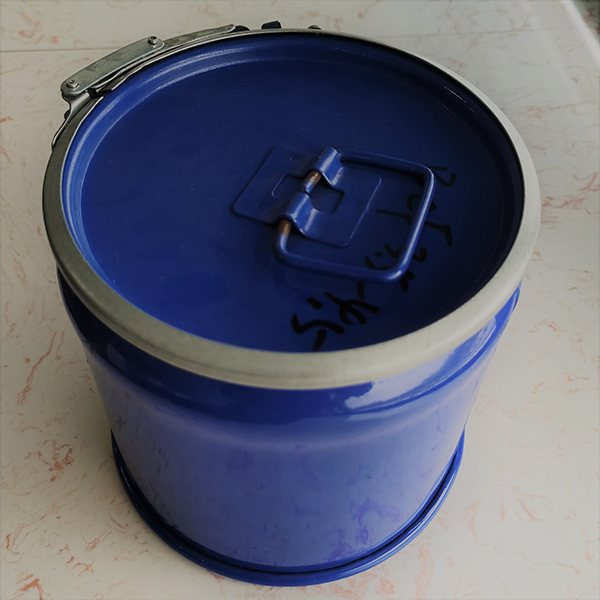

Packing In iron drum with inner plastic bag, 25kg or 50kg net weight.

Tungsten Carbide Pellet or Cemented Carbide Pellet at Western Minmetals (SC) Corporation can be delivered in YQ1, YG2, YQ3 grade of Cobalt content 4%, 6% and 7% respectively with size of 10-20, 14-20, 20-30 and 30-40 mesh with package of 25kgs in plastic bag with iron drum outside, or as customized specification to reach the perfect solution.

Tungsten Carbide Pellet is for hard-surfacing to increase significantly the service life after welding onto the surface of the tools to form a hardened wear-resistant layer to against abrasive wear, and spraying wear parts in mining and oil drilling field, and for built-up welding to improve substantially the hardness, wear resistance and corrosion resistance of the surface of the machined parts. Tungsten carbide pellet is also widely used as punching and stamping machine parts, impact-resistant forging die, hot forging die and finished rollers, engineering machinery, metallurgical as well as mining industry etc.

Tungsten carbide  (3)

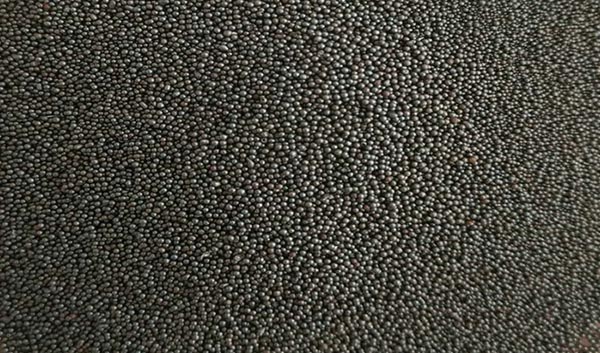

Tungsten carbide pellet  (6)

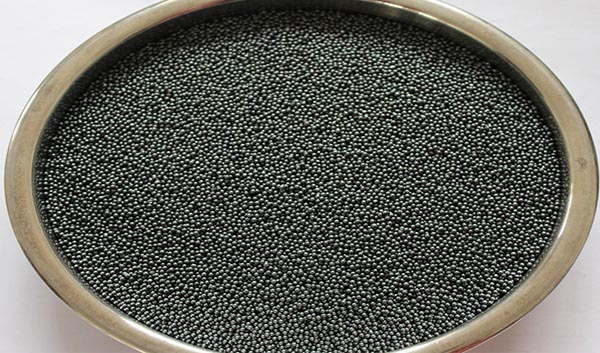

Tungsten carbide pellet  (7)

Tungsten carbide  (5)

Tungsten carbide (7)
