Hot New Products Cadmium Zinc Telluride Single Crystal 99.9999% - Cadmium Telluride – WMC


Details

Tags

Commodity  Standard Specification
Purity Impurity  (ICP-MS or GDMS Test Report, PPM Max each)
Polycrystalline

Cadmium Telluride

CdTe

5N 99.999% Ag/Cu/Mg/Ni/Fe/As/Bi 0.5, Al/Pb/Zn1.0 Total ≤10
6N 99.9999% Ag/Zn/Al/Mg/Ni/Fe/Bi 0.05, Pb 0.1, Cu/In 0.01 Total ≤1.0
7N 99.99999% Ca/Se/Sn/Fe/Pb 0.01, Zn 0.02, Ag/Al/Cu/Mg/Ni/Bi 0.005 Total ≤0.5
Size ≤1.5 or 3-8mm or ≤25g lump, -100mesh powder
Packing 1kg in composite Aluminum bag or plastic bottle, carton box outside
Single Crystal

Cadmium Telluride

CdTe

6N 7N Purity 6N CdTe impurity total 1.0, 7N CdTe impurity total 0.1
Orientation <100>, <110>, <111>
Surface Roughness <10 Å
Surface Finish Polished/Etched, Polished/Polished
Size 5x5mm or10x10mm x Thickness(500, 1000 or 3000um) or as customer’s requirements.
Packing Single piece in cassette or container, with vacuum bag outside.

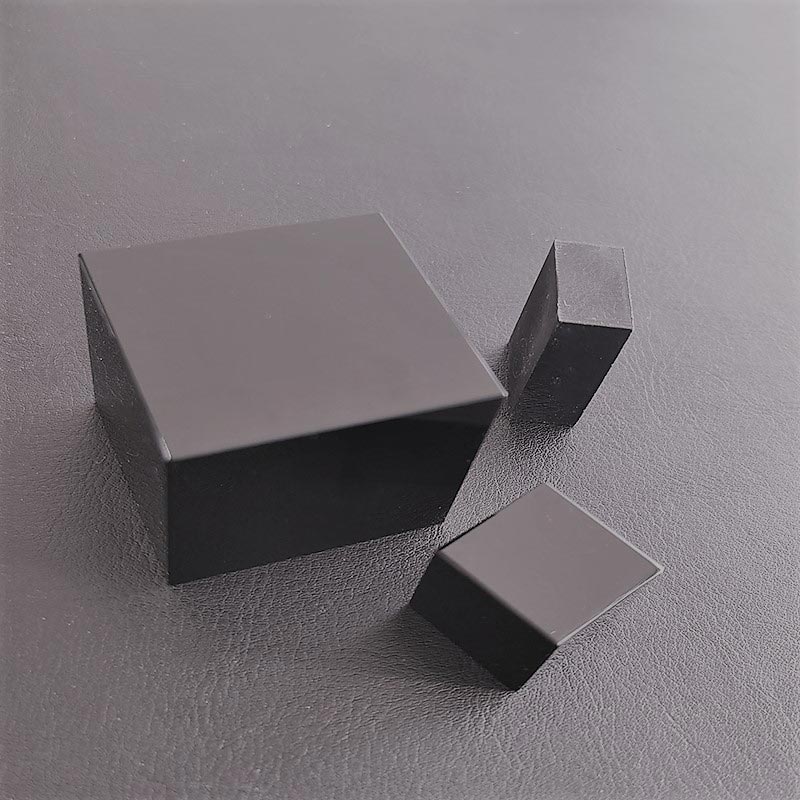

Cadmium Telluride CdTe 5N 6N 7N polycrystalline at Western Minmetals (SC) Corporation with purity of 99.999% 99.9999% and 99.99999% can be delivered in size of powder, lump, chunk, bar and bulk crystal, which is packed in composite aluminum bag filled argon gas protection with carton box outside. Cadmium Telluride CdTe single crystal 6N 7N 99.9999% and 99.99999% at Western Minmetals (SC) Corporation can be offered in form of bar and blank 5x5x0.5mm, 10x10x0.5m, and Disc with 1.0 inch in diameter x 0.5mm or as customized specification to reach the perfect solution..

CdTe-W3

CZT-2

  • Sample Available Upon Request
  • Safety Delivery of Goods By Courier/Air/Sea
  • COA/COC Quality Management
  • Secure & Convenient Packing
  • UN Standard Packing Available Upon Request
  • Quality Inspection Including XRD/SEM/ICP/GDMS etc
  • Full Scope of Trade Terms CPT/FOB/ CFR/CIP By Incoterms 2010
  • Flexible Payment Terms T/T D/P L/C Acceptable
  • Full Dimensional After-Sale Services
  • ISO9001:2015 Certified & Rohs/REACH Regulations Approval
  • Non-Disclosure Agreements
  • Non-Conflict Mineral Policy
  • Regular Environmental Management Review
  • Social Responsibility Fulfillment
